Walk In Freezer/Commercial Freezer

Model # WSF

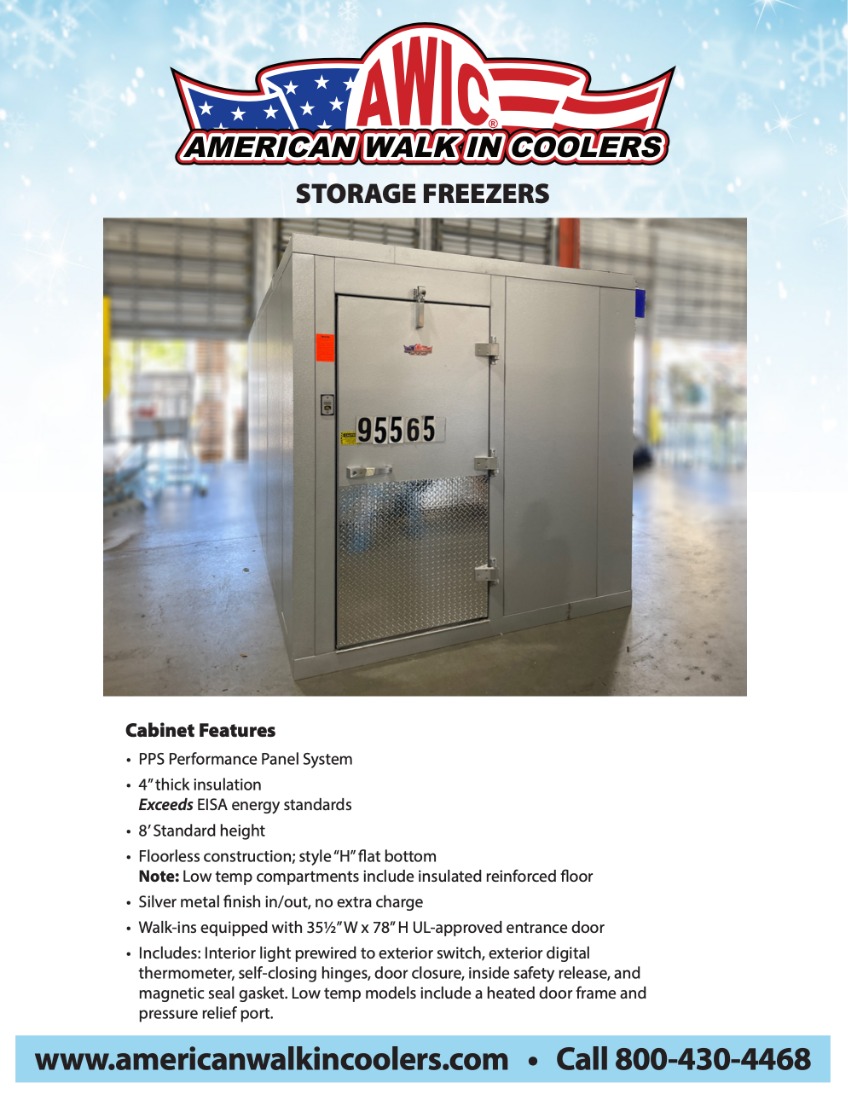

Summary Cabinet Features:

Click to View PDF
  • PPS Performance Panel System
  • 8′ Standard height
  • 4″ thick insulation;
    “Exceeds” EISA energy standards
  • Cooler Compartment:
    Floorless – Optional insulated floor available
  • Freezer Compartment:
    Includes insulated reinforced floor
    Consult factory for floor metal finish requirements
  • Silver embossed galvanized metal in/out
  • (2) 35½” W x 78″ H UL approved entrance doors
    Each includes:
    Interior light prewired to exterior switch, exterior digital thermometer, self closing hinges, door closure, inside safety release and magnetic seal gasket. Low tempo door includes heated door frame and pressure relief port
  • (2) Wall trim strips

Summary of Refrigeration System:

  • UL approved condensing unit
    Note: Specify indoor or outdoor use
  • Matching low silhouette evaporator coil(s)
  • Refrigeration controls

National Approvals:
UL-NSF Approved
Smoke & Flame Spread listing as per ASTM84 testing

Summary of Refrigeration Systems

Low Temp Applications: Choice Of:
Copeland “Indoor” condensing units or Heatcraft™ outdoor condensing units
All condensing units matched with low silhouette evaporator coil(s) with electric defrost
Refrigeration controls provided for both indoor & outdoor units

All components are UL approved
Proper sizing of evaporator coil(s) minimizes ice build-up
Outdoor Units adjust to seasonal changes in temperatures

All products engineered for long term dependability
Excellent warranties
Excellent warranties

Options (Call for Pricing)

Cabinet Options:

  • Standard 8′ high, 10′ & 12′ high available (taller heights available with urethane models)
  • Custom heights
  • Modifications for: wood framed openings to accept glass display doors, angles, offsets, interior posts, removable panel to access mechanical
  • Insulated reinforced floor
  • Non-skid strips for floor
  • Floor ramps; exterior & interior
  • Metal finishes:
    Standard – Silver embossed galvanized
    Decorative: (10) painted colors, (2) woodgrains and stainless steel
    Diamond plate for walls, doors and floors
  • Outdoor membrane roof cap with perimeter hold-down trim
  • Door rain guard, weatherproof light switch and locking handle
  • Security locking bar (padlock by others)
  • Trim; wall trim strips, enclosure panels
  • Ceiling support system (allows multiple ceiling panels to be suspended to overhead building rafters)

Solid Doors:

  • Standard sizes (up to 42″ wide) can be ordered with door closure, extra hinges, diamond plate kick plate, vision window, or in-swing feature
  • Hinged available up to 6′ wide x 10′ high;
  • Sliding available up to 10′ wide x 10′ high; (manual & electric slide available)

Energy Saving Doors:

  • Hanging strip curtains
  • High impact, double acting doors

Glass Doors:

  • Display doors with lights and heavy duty wire shelving
  • Entrance door (Roll-A-Way beverage rack merchandiser available)

Lighting:

  • Additional incandescent vapor proof lights with globe (shipped loose)
  • 4′ and 8′ double bulb fluourescent light fixtures with shield & low temp ballast (less bulbs)

Storage Shelving:

  • General all purpose utility shelving-Erecta Brite™
  • Cooler/Freezer wire storage shelving-Metroseal™

Refrigeration:

  • Pro packaged self-contained “drop-in” medium & low temp refrigeratoin units Fully assembled: Flush mounted coil and condensate evaporation pan (no drain line)
  • Custom applications
  • Temperature alarms
  • Refrigerant leak detectors for local codes
