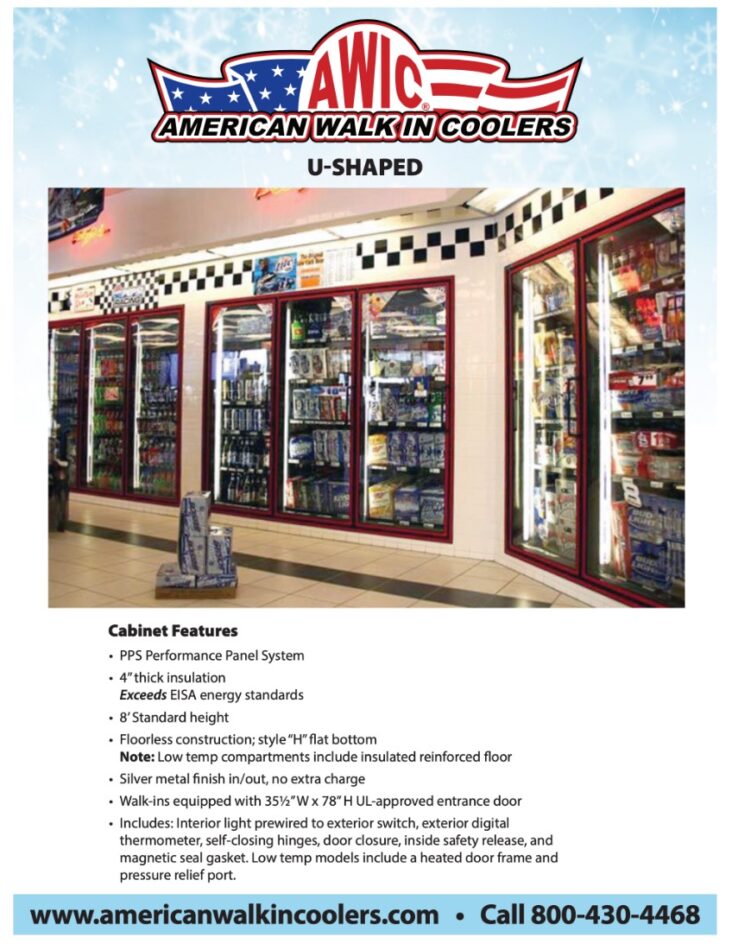

U-Shaped Coolers and Freezers

Summary Cabinet Features:

Click to view PDF
  • PPS Performance Panel System
  • 4″ thick insulation;
    “Exceeds” EISA energy standards
  • 8′ Standard height
  • Floorless construction; style “H” flat bottom
    Note: Low temp compartments include insulated reinforced floor
  • Silver metal finish in/out no extra charge
  • Walk-ins equipped with 35½” W x 78″ H UL approved entrance door
    Includes: Interior light prewired to exterior switch, exterior digital thermometer, self closing hinges, door closure, inside safety release and magnetic seal gasket. Low temp models include heated door frame and pressure relief port

Summary of Medium & Low Temp Glass Display Doors:

  • Anthony® International; Mo#401 Standard
  • (Mo#101 and other door sizes available)
  • Standard door size: 30¼” Wide x 75″ High
  • (2) Bright fluorescent lights per door
  • (5) Standard epoxy coated shelve per door
  • Door and frame condensate heaters
    Note: Optional glass heat; standard on low temp models
  • Choice of frame finish: Gold, Silver or Black

Summary of Medium & Low Temp Refrigeration System(s):

  • Heavy duty Heatcraft™ outdoor condensing unit(s) are matched with low silhouette evaporator coil(s). Low temp evaps include electric defrost
  • Refrigeration controls are included
  • Tubing and refrigerant by others

All components are UL Approved
Proper sizing of evap coil(s) minimizes ice build-up
Outdoor Units adjust to seasonal changes in temp

All products engineered for long term dependability
Excellent warranties

National Approvals:
UL Electrical Approved
UL Sanitation (NSF7 Standard) Approved
Smoke & Flame Spread listing per ASTM84 testing

Options (Call for Pricing)

Cabinet Options:

  • Standard 8′ high, 10′ & 12′ high available (taller heights available with urethane models)
  • Custom heights
  • Modifications for: wood framed openings to accept glass display doors, angles, offsets, interior posts, removable panel to access mechanical
  • Insulated reinforced floor
  • Non-skid strips for floor
  • Floor ramps; exterior & interior
  • Metal finishes:
    Standard – Silver embossed galvanized
    Decorative: (10) painted colors, (2) woodgrains and stainless steel
    Diamond plate for walls, doors and floors
  • Outdoor membrane roof cap with perimeter hold-down trim
  • Door rain guard, weatherproof light switch and locking handle
  • Security locking bar (padlock by others)
  • Trim; wall trim strips, enclosure panels
  • Ceiling support system (allows multiple ceiling panels to be suspended to overhead building rafters)

Solid Walk-in Door:

  • Standard door size: 35½” W x 78″ H
  • Additional sizes available; please call
    Available Options:
    Door closure (up to 42″ wide), extra hinges, diamond kick plate, vision window, or in-swing hinging

Energy Saving Doors:

  • Hanging strip curtains
  • High impact, double acting doors

Glass Display Doors-Medium & Low Temp Use:

  • Standard Mo#401 – 30¼” W x 75″ H: specify hinging, trimline handle & (5) 24″ deep shelves
  • Mo#101 – 30¼” W x 75″ H: reversible hinging, choice of slimline or full length handle & (5) 27″ deep shelves
    Note all Models: Choice of frame finish: Gold, Silver or Black frame. Black finish
    Available Options:
    Additional shelves
    Electronic lighting system (ELS)-available on Mo#101
    Glass heat for high humidity application; std on low temp models
    Door locks

Glass Entrance Door-Medium Temp Only:

  • Mo#403 – Specify 30″ or 36″ Wide x 81″ High; specify hinging, trimline handle
  • Mo#103 – Specify 30″ or 36″ Wide x 81″ High; reversible hinging, slimline or full length handle
    Note: Choice of frame finish: Gold, Silver or Black frame. (Lights optional, no shelving)
    Available Options:
    Fluorescent lights attached to each side of frame
    Electronic lighting system (ELS)-available on Mo#101
    Roll-A-Way beverage rack merchandiser with (5) shelves)


  • Additional incandescent vapor proof lights with globe (shipped loose)
  • 4′ and 8′ double bulb flourescent light fixtures with shield & low temp ballast (less bulbs)


  • Custom applications
  • Temperature alarms
  • Refrigerant leak detectors for local codes

For additional details on all our Walk-in products Call 800-430-44668.
