Storage Coolers

Model # WSC

Summary Cabinet Features:

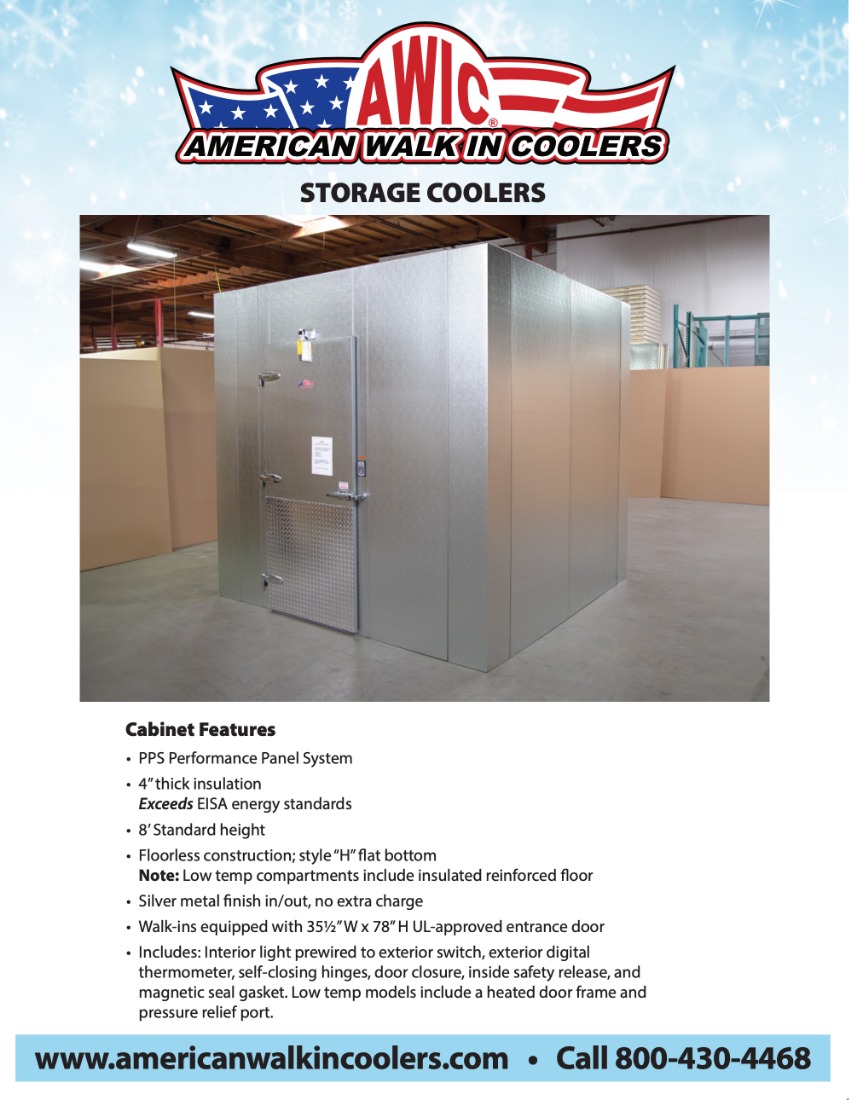

Click to View PDF
  • PPS Performance Panel System
  • Heights up to 28′ high
  • 4″ thick insulation;
    “Exceeds” EISA energy standards
  • Floorless construction; style “H” flat bottom
  • Silver embossed galvanized metal in/out
  • 35½” W x 78″ H UL approved entrance doors.
    Interior light prewired to exterior switch, exterior digital thermometer, self closing hinges, door closure, inside safety release and magnetic seal gasket
  • (2) Wall trim strips

Summary of Refrigeration System:

  • UL approved condensing unit
    Note: Specify indoor or outdoor use
  • Matching low silhouette evaporator coil(s)
  • Refrigeration controls

National Approvals:
UL-NSF Approved
Smoke & Flame Spread listing as per ASTM84

Summary of Refrigeration Systems

Medium Temp Applications: Choice Of:
Copeland “Indoor” condensing units or Heatcraft™ outdoor condensing units
All condensing units matched with low silhouette evaporator coil(s)
Refrigeration controls provided for both indoor & outdoor units

All components are UL approved
Proper sizing of evaporator coil(s) minimizes ice build-up
Outdoor Units adjust to seasonal changes in temperatures

All products engineered for long term dependability
Excellent warranties

Options (Call for Pricing)

Cabinet Options:

  • Standard 8′ high, 10′ & 12′ high available (taller heights available with urethane models)
  • Custom heights
  • Modifications for: wood framed openings to accept glass display doors, angles, offsets, interior posts, removable panel to access mechanical
  • Insulated reinforced floor
  • Non-skid strips for floor
  • Floor ramps; exterior & interior
  • Metal finishes:
    Standard – Silver embossed galvanized
    Decorative: (10) painted colors, (2) woodgrains and stainless steel
    Diamond plate for walls, doors and floors
  • Outdoor membrane roof cap with perimeter hold-down trim
  • Door rain guard, weatherproof light switch and locking handle
  • Security locking bar (padlock by others)
  • Trim; wall trim strips, enclosure panels
  • Ceiling support system (allows multiple ceiling panels to be suspended to overhead building rafters)

Solid Doors:

  • Standard sizes (up to 42″ wide) can be ordered with door closure, extra hinges, diamond plate kick plate, vision window, or in-swing feature
  • Hinged available up to 6′ wide x 10′ high;
  • Sliding available up to 10′ wide x 10′ high; (manual & electric slide available)

Energy Saving Doors:

  • Hanging strip curtains
  • High impact, double acting doors

Glass Doors:

  • Display doors with lights and heavy duty wire shelving
  • Entrance door (Roll-A-Way beverage rack merchandiser available)


  • Additional incandescent vapor proof lights with globe (shipped loose)
  • 4′ and 8′ double bulb fluourescent light fixtures with shield & low temp ballast (less bulbs)

Storage Shelving:

  • General all purpose utility shelving-Erecta Brite™
  • Cooler/Freezer wire storage shelving-Metroseal™


  • Pro packaged self-contained “drop-in” medium & low temp refrigeratoin units Fully assembled: Flush mounted coil and condensate evaporation pan (no drain line)
  • Custom applications
  • Temperature alarms
  • Refrigerant leak detectors for local codes
